核心参数
仪器种类: 动态热机械分析仪DMA/ DMTA
产地类别: 进口
温度范围: 室温-1750C
温度准确度: +/-1C
应力范围: 0.1 - 850(GPa)
位移范围: 0.5mm以上
频率范围: 10Hz ~ 130KHz

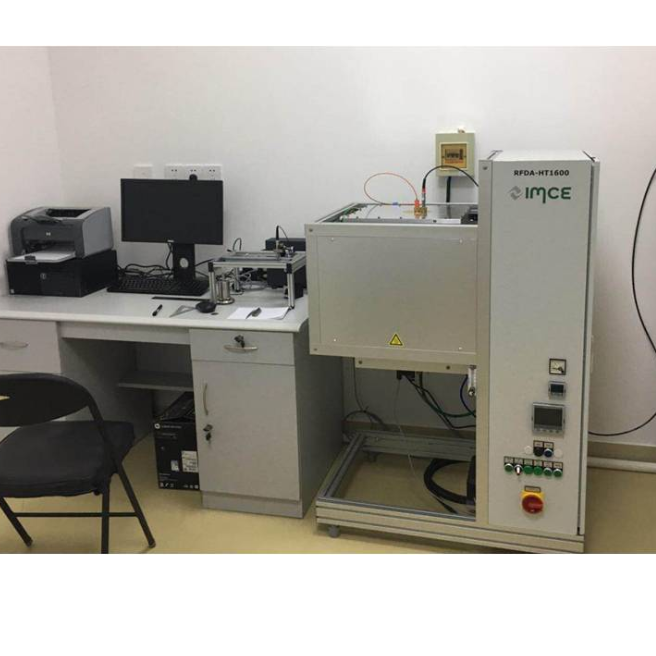

仪器简介:
比利时IMCE公司是一家专业的测试弹性模量和阻尼内耗分析仪器的生产厂家, 仪器基于共振频率动态测量方法, 应用完全非破坏性测试技术, 适用于陶瓷及金属等多种材料的生产(质量控制)及科学研究领域, IMCE公司是目前世界上唯一能在1750C高温和气氛控制条件下, 利用目前最先进的软件评估及研究, 精确测定共振频率、弹性模量、剪切模量和阻尼内耗等相关技术指标。
公司主要产品有:1、弹性模量和阻尼内耗分析仪
型号:RFDA MF Professional
2、高温炉:
型号:RFDA-HT1700
型号:RFDA-HTVP1700C
型号:RFDA-HTVP1600; HT1600, HT650. HT1050
3、软件
型号:RFDA MF Software
在中科院沈阳金属研究所高性能陶瓷与复合材料重点实验室及测试中心有该公司2套先进的高温测试系统。
技术参数:
1、共振频率。 10Hz ~ 130KHz
2、阻尼或内耗(10ˉ5-----0.1)
3、弹性模量
4、剪切模量
5、泊松比率
6、温度:室温--1750C。
7、气氛控制
8,真空系统,激光检测
主要特点:
1、动态法测试(线性或非线性)
2、样品完全非破坏性测试
符合ASTM-E-1876-99方法
